fine steering mirror

fine steering mirror.

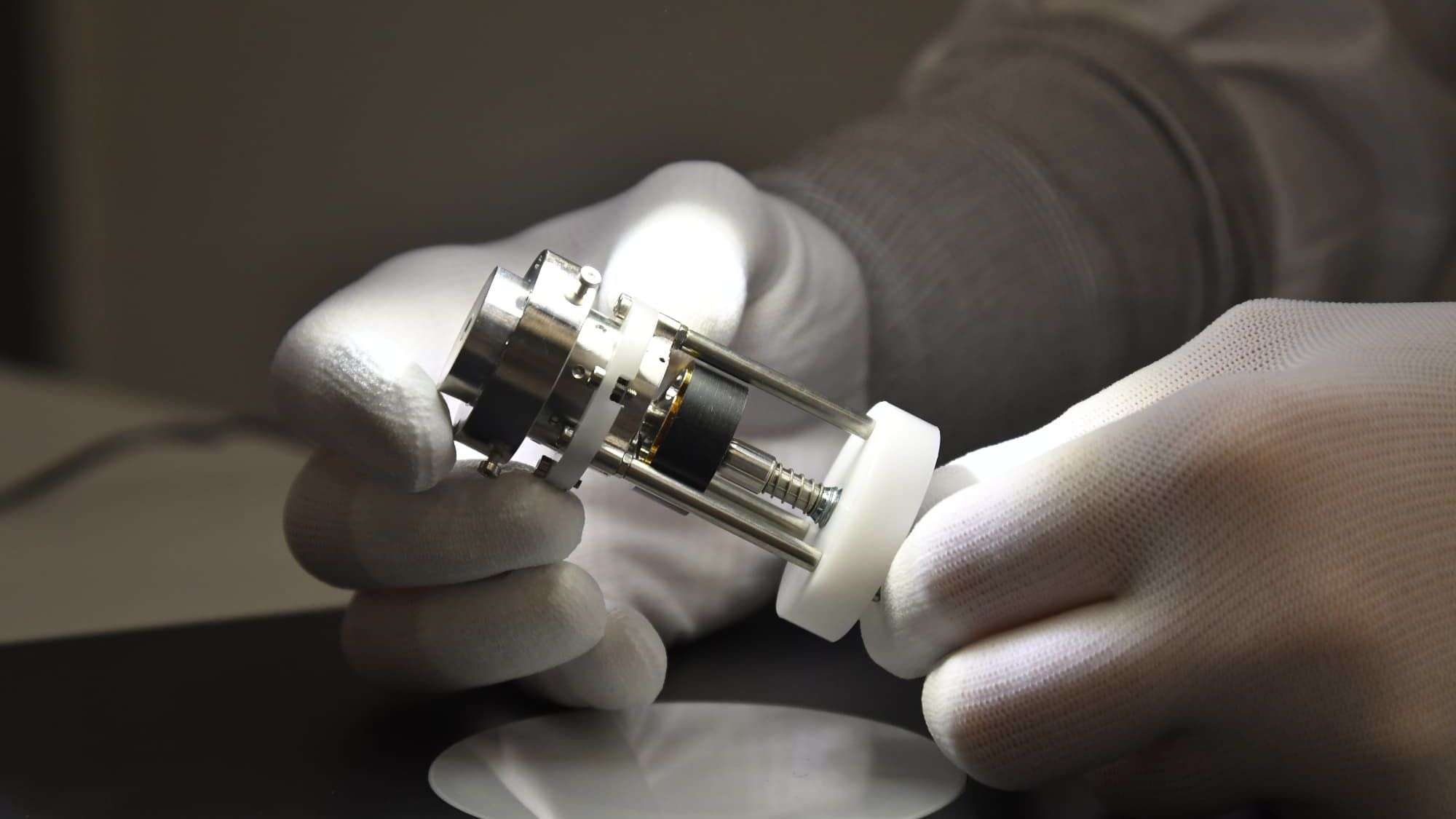

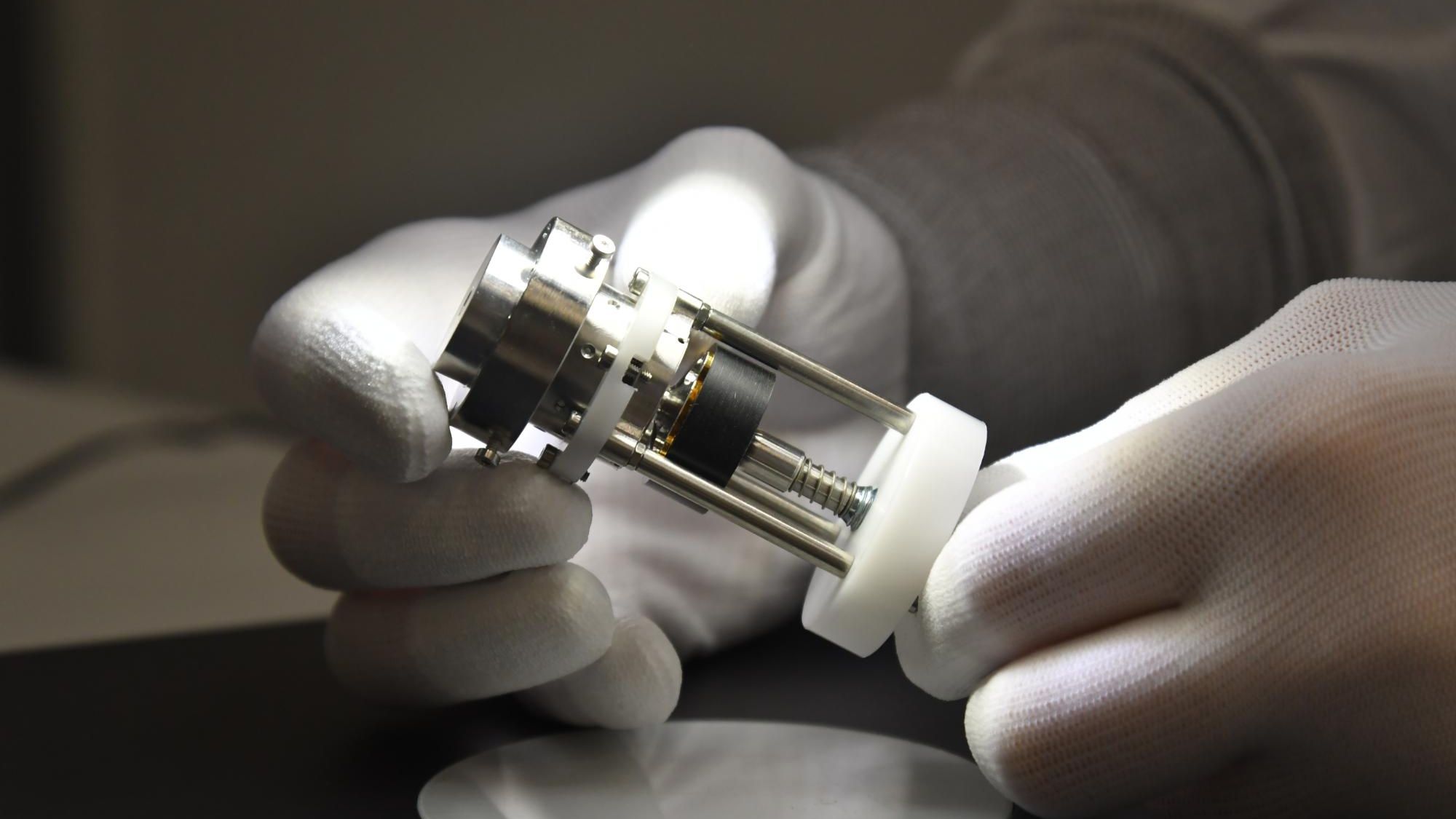

Precision laser beam steering determines the quality and bandwidth of satellite laser communications for fast and secure internet and data traffic. For this purpose, the Fine Steering Mirror (FSM) has been designed. We developed a TNO design into a prototype that is a space-compatible and light-weight and has a lower power consumption. We can manufacture FSMs in large numbers.

high resolution, excellent dynamics.

The FSMs in the optical terminals of satellites, airplanes and ground stations provide accurate alignment of transmitter and receiver. Their mirror (20 millimeters in diameter) is extremely flat, to prevent wavefront distortion. For this compact, space-compatible FSM, we applied our optomechatronics and manufacturing expertise in close collaboration with FSO Instruments and TNO. The FSM can compensate high-frequency disturbances due to its highly dynamic response mechanism. It features a flexure-based design that enables high linearity and is maintenance-free.

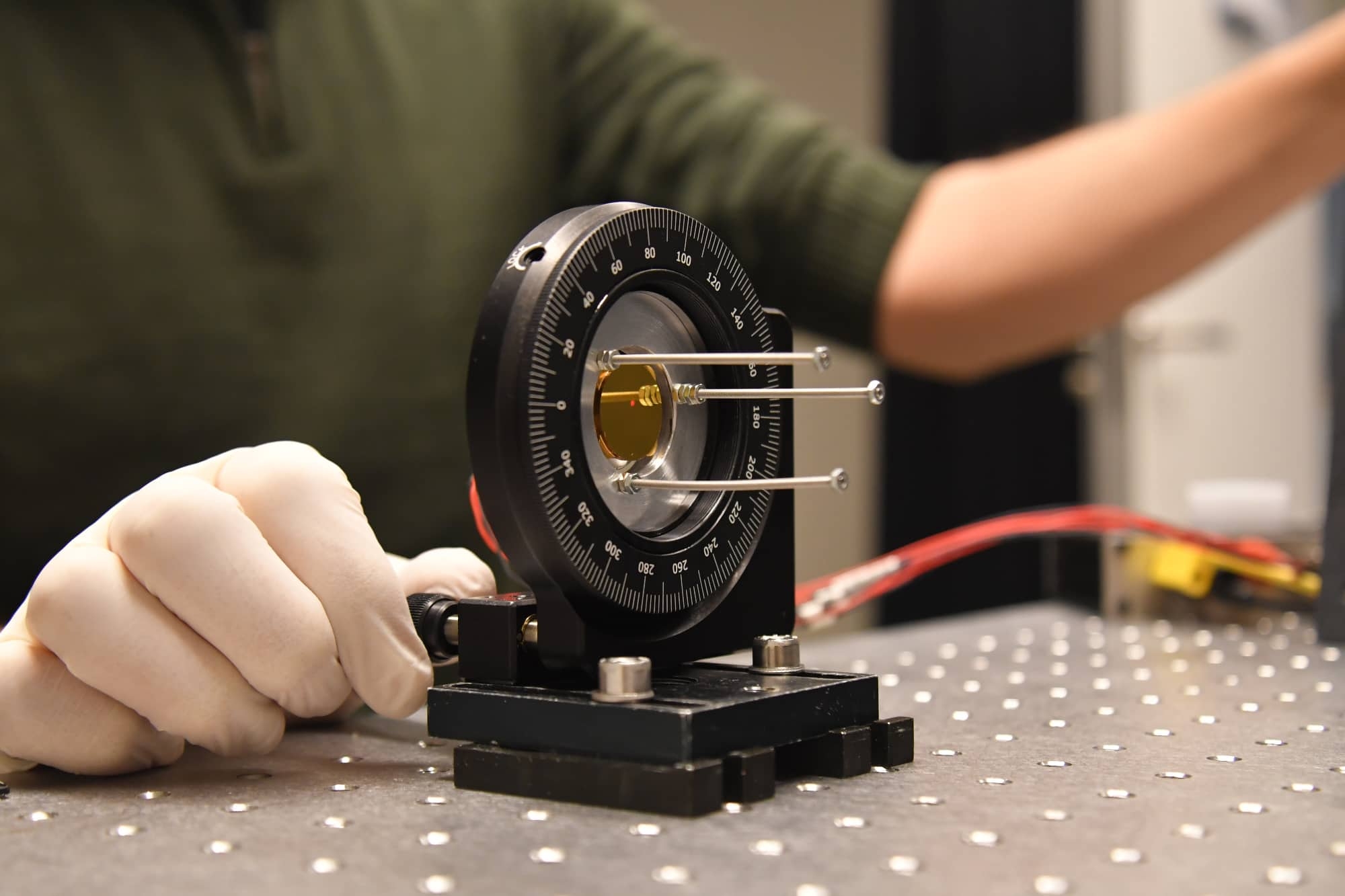

FSM specifications

HIGHLIGHTS

  • tip/tilt range of ±2º (optical)
  • closed-loop bandwidth exceeding 1 kHz
  • high-efficiency variable-reluctance actuators
  • high-resolution, low-power, wide-range eddy-current sensors
  • very low power consumption (< 0.2 W) at max. tip/tilt

high efficiency, low thermal distortion.

Thermal effects can induce stresses and deformations in the FSM construction. We apply high-efficiency variable-reluctance actuators, which have a higher force-to-volume and force-to-energy ratio than alternative actuator types. High-resolution eddy-current sensors are used for accurate pointing precision. An efficient design for manufacturing allows us to produce these FSMs in large numbers.

More information can also be found through our partner FSO Instruments: Advanced Optomechatronic Systems – FSO Instruments.

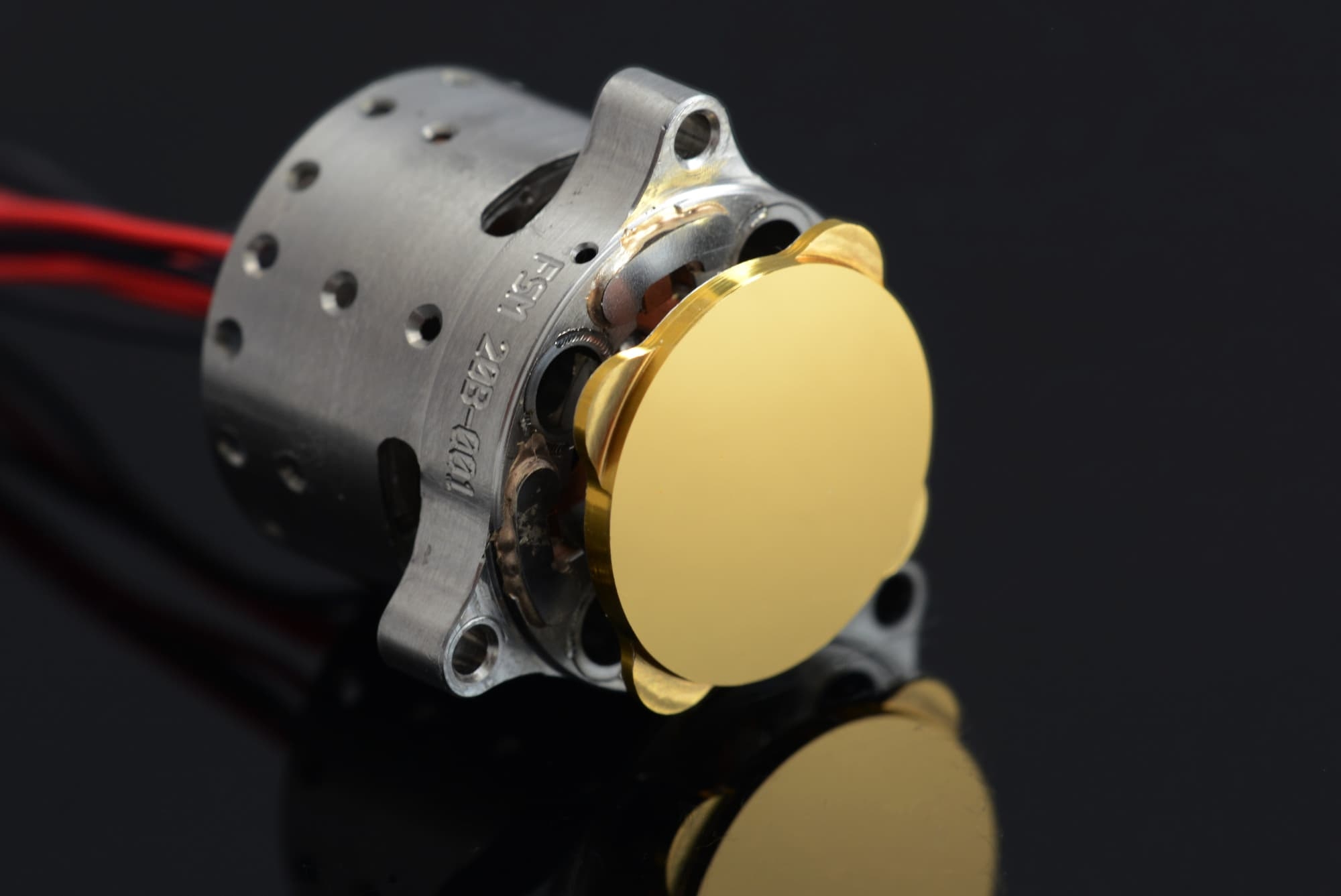

laser based systems

“we successfully industrialized the FSM design”

The FSM industrialization presented us with various challenges. We made smart material choices, optimized manufacturability, and reduced costs considerably. In addition, we designed special versions of components such as an extremely efficient actuator. We put the FSMs through their paces using strict test protocols, to ensure that they survive a launch and deliver high performance. Our FSMs can be supplied in accordance with the European standards specifications.

Not exactly what you are looking for? As design specialist, Demcon focal is able to support you with modified designs. Don't hesitate to contact us!
